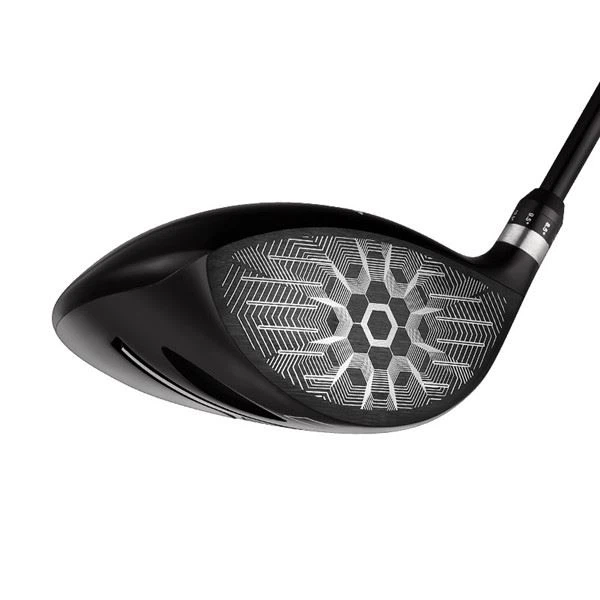

Titanium Alloy Golf Head Forgings

● Item: Titanium alloy golf head forgings

● Brand: zhongwei

● Item number: Ti golf head-01

● Type: Golf Head

● Head Material: Titanium Alloy

● Shaft stiffness/Flex: R (regular)

● Logo printing: Yes

● Custom processing: Yes

● Materials: TC4, stainless steel, soft iron,

● Process: Investment Casting, Forging, Metal Injection Molding

Product Dsecription

1. Implementation standards: the company strictly implements ISO9001, ISO14001, IATF16949 certification

The products have passed the certification of ROHS, FDA EU, etc.

2. Product material standards: ISO, GB, ASTM, SAE, EN, DIN, BS, AMS, JIS, ASME, DMS, TOCT, GB

3. Main process: cold forging, hot forging, free forging, fetal membrane forging, die forging and special die forging. And has die casting process, investment casting, shell casting, deburring, sand blasting, machining, heat treatment, leak testing, surface treatment, etc.

4. Titanium alloy golf head forgings available materials:

Copper, titanium alloy, high manganese steel, high chromium steel, high nickel steel, carbon steel, aluminum alloy, alloy steel, stainless steel, gray iron, cast iron, cast steel, etc. are customized according to customer requirements.

Application

Golf is a sports and leisure project that advocates nature, is suitable for men, women and children, and is beneficial to physical and mental health. Since the use of 17-4PH stainless steel in golf equipment, the golf industry has spared no effort in pursuing the application of new materials, and the golf equipment manufacturing industry has become an industry that is extremely sensitive to new material technology. Recently, advanced materials such as Ti-6Al-4V and various high-strength β-titanium alloys have been widely used in golf equipment. Browsing the new products of major international golf equipment manufacturers in 2001, you can find that the raw materials are still mainly titanium alloys, such as: CALLAWAY's E.R.CIII, VFT, PING; the company's TIST, Taylormade's Ti300 series. MIZUiNO's 300R, etc., and more and more striking surface materials use high-strength beta titanium alloys.

Titanium alloy materials for the striking surface mainly include TC4 (Ti-6Al-4V) and high-strength and high-toughness beta titanium alloys (or near-beta titanium alloys) such as SP700, T-153, Ti1023, and β21S. TC4 material has good comprehensive performance. It is also the titanium alloy material with the most mature application and the most complete performance data. It is generally used for TC4 integral casting ball head or pure titanium as the body and the striking surface is forged ball head SP700 made of TC4 material. Developed, it exhibits superplasticity at 770~800 ℃, and the elongation reaches 2000%; Ti1023 is a forged titanium alloy with high structural benefit, high reliability and low manufacturing cost to adapt to the principle of damage tolerance design. Tensile strength, fracture toughness and fatigue properties are obviously better than TC4, with excellent forging properties, isothermal forging can be carried out at 760 ℃; Ti-153 has better cold working properties than industrial pure titanium, and can be used for various complex processes in solid solution state. Cold forming, the tensile strength at room temperature after aging is above 1000 MPa, and the striking surface is generally formed by stamping.

β21S is an anti-oxidation, ultra-high-strength titanium alloy developed by American Titanium Corporation. It has excellent cold and hot working properties, and the cold rolling deformation can reach 75% without intermediate annealing. The E value is also low, so it is more suitable for striking surfaces. Material. These high-strength and high-toughness beta titanium alloys (or near beta titanium alloys) have gradually replaced TCA and become the mainstream of striking surface materials. Since the striking performance of the ball head mainly depends on the striking surface, the body is still cast with ITC4, the striking surface is forged with β-titanium alloy, and finally connected as a whole by welding and other methods.

Titanium alloy golf head forgings are generally formed by integral casting when using TC4 material as the striking surface. When using high-strength and high-toughness β-titanium alloy as the striking surface, the plate forming process or hot forging process is generally used, but the variable section structure is generally manufactured by the precision forging process.

Post Casting Process

1. Heat treatment: annealing, carbonization, tempering, quenching, normalizing, surface tempering

2. Processing equipment: CNC, WEDM, lathe, milling machine, drilling machine, grinder, etc.;

3. Surface treatment: powder spraying, chrome plating, painting, sandblasting, nickel plating, galvanizing, blackening, polishing, bluing, etc.

Moulds and Inspection Fixtures

1. Mold service life: usually semi-permanent. (except for lost foam)

2. Mold delivery time: 10-25 days, (according to product structure and product size).

3. Tooling and mold maintenance: Zhongwei is responsible for precision parts.

Quality Control

1. Quality control: the defective rate is less than 0.1%.

2. Samples and trial run will be 100% inspected during production and before shipment, sample inspection for mass production according to ISDO standards or customer requirements

3. Testing equipment: flaw detection, spectrum analyzer, golden image analyzer, three-coordinate measuring machine, hardness testing equipment, tensile testing machine;

4. Provide after-sales service.
