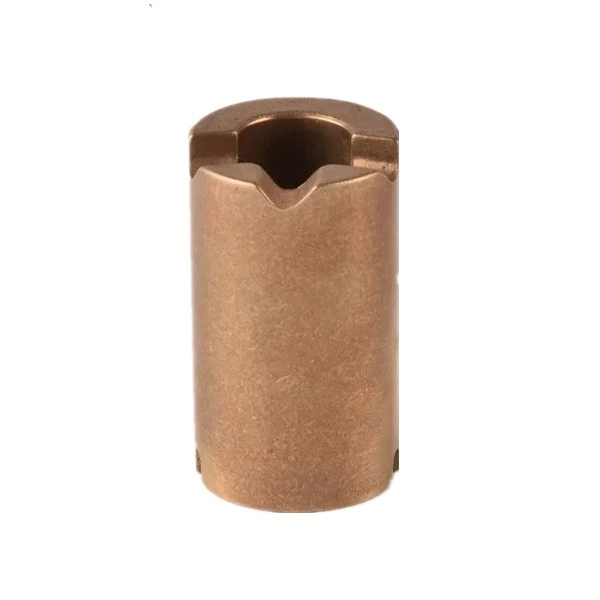

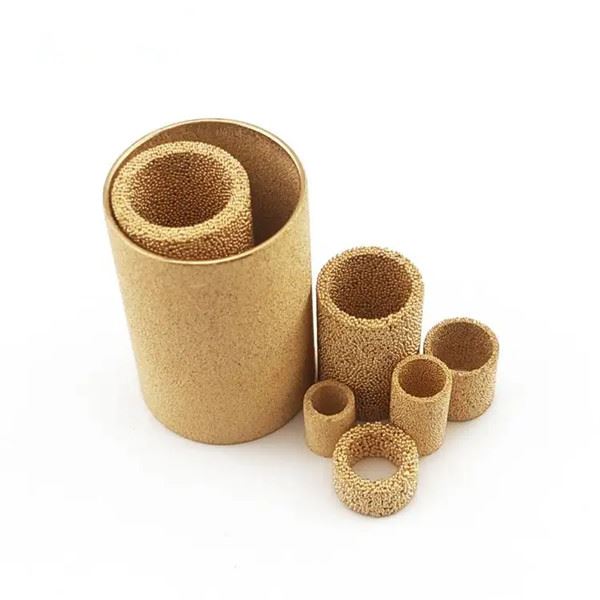

Copper Alloy Powder Metallurgy Sintered Parts

Copper alloy powder metallurgy sintered parts is a copper alloy directly formed from copper powder and other metal powders by powder metallurgy technology. Commonly used are Cu-l10Fe5Sn5Pb8C3SiO23MoSi alloy, Cu50W alloy, Cu50Cr alloy and CuAl2O3 alloy.

Qinhuangdao Zhongwei Precision Machinery Co., Ltd. Powder Metallurgy Division was established in 2007 and is located in Qinhuangdao City, Hebei Province. There are two production lines for metal injection molding MIM process and powder metallurgy PM. The company's existing self-developed products: German Maya warp knitting machine Sensing chain blocks, electric actuator gears, automobile oil pump rotors, washing machine transmission gears and other products, the powder metallurgy products produced cover automobiles, motorcycles, power tools, home appliances, textile machinery parts and other fields. Our company is a comprehensive high-tech enterprise integrating R&D, production and sales of copper alloy, iron base, stainless steel base, aluminum alloy, nickel alloy, cobalt alloy, tungsten alloy, cemented carbide and powder metallurgy structural parts.

Product Description

1. Implementation standards: the company strictly implements ISO9001, ISO14001, IATF16949 certification

The products have passed the certification of ROHS, FDA EU, etc.

2. Product material standards: ISO, GB, ASTM, SAE, EN, DIN, BS, AMS, JIS, ASME, DMS, TOCT, GB

3. Main processes: metal injection molding MIM, powder metallurgy PM, investment casting, die-casting aluminum,

4. Available materials for powder metallurgy:

Copper alloy, iron base, titanium alloy, stainless steel base, aluminum alloy, nickel alloy, cobalt alloy, tungsten alloy, cemented carbide, hydroxy alloy, soft magnetic material and 3D printing can be customized according to customer requirements.

Product Feature

Powder copper alloys refer to copper alloys that are directly formed from copper powder and other metal powders by powder metallurgy technology. Copper alloy powder metallurgy sintered parts metal powder can be directly made into various shapes of products or parts without cutting or only a small amount of cutting. The traditional processes are: milling, mixing, pressing, sintering, etc.

1. Cu-l10Fe-5Sn-5Pb-8C

-3SiO2-3MoSi alloy

It has good physical and mechanical properties, good cutting and wear resistance, sufficient friction coefficient and friction coefficient stability, simple process and low price, mainly used for brake materials.

2. Cu-50W alloy

It is formed by mixing powder sintering method or re-pressing method. The alloy has: high strength and hardness, good electrical and thermal conductivity, wear resistance, fusion resistance, and arc burn resistance. , EDM electrode.

3. Cu-50Cr alloy

Solid-phase sintering is used to make the billet reach a certain density (relative density > 80%) and strength, and then deformed by hot working to achieve complete densification. Hot extrusion, hot pressing or hot forging can be used, and the processing temperature is generally lower than the melting point of copper. 100℃, after processing, the material is vacuum annealed at 500~600℃ to relieve stress and degas. The alloy has good electrical and thermal conductivity, anti-melting, anti-arc burnout, and is used for vacuum switch appliances.

4. Cu-AI2O3 alloy

Oxide dispersion strengthening (ODS) was used. The alloy has high strength, electrical and thermal conductivity, especially high softening resistance and recrystallization temperature. Suitable for electrodes, X-ray tubes, microwave tubes, hybrid circuit packages, commutators, switch components, etc. of resistance welding machines.

Post Casting Process

1. Heat treatment: annealing, carbonization, tempering, quenching, normalizing, surface tempering

2. Processing equipment: CNC, WEDM, lathe, milling machine, drilling machine, grinder, etc.;

3. Surface treatment: powder spraying, chrome plating, painting, sandblasting, nickel plating, galvanizing, blackening, polishing, bluing, etc.

Moulds and Inspection Fixtures

1. Mold service life: usually semi-permanent. (except for lost foam)

2. Mold delivery time: 10-25 days, (according to product structure and product size).

3. Tooling and mold maintenance: Zhongwei is responsible for precision parts.

Quality Control

1. Quality control: the defective rate is less than 0.1%.

2. Samples and trial run will be 100% inspected during production and before shipment, sample inspection for mass production according to ISDO standards or customer requirements

3. Testing equipment: flaw detection, spectrum analyzer, golden image analyzer, three-coordinate measuring machine, hardness testing equipment, tensile testing machine;

4. Provide after-sales service.
