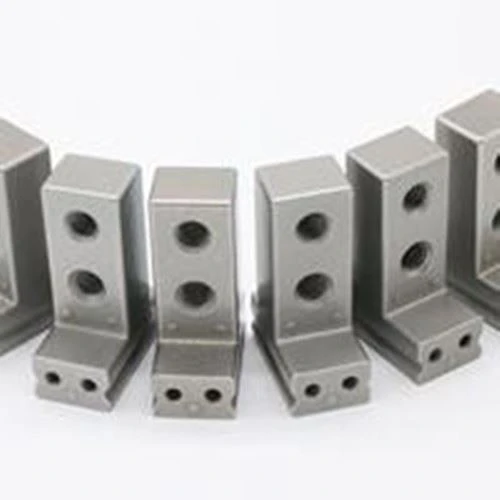

MHZ2-16D Gripper MIM Parts
Jingyan established the CNC department in 2016. In addition to supporting the processing of our own MIM process, it can independently undertake CNC business. At present, there are 89 CNC machines, mainly FANUC, equipped with professional programming and related personnel, and can provide customers with CNC processing services.
Product Introduction
Titanium MHZ2-16D Gripper MIM Parts | |||||||||
Item | Material | Production Process | Sintering Temperature | Mold | Custom | ||||
MHZ2-16D Gripper | 440c | Metal Injection Molding | 1550℃ | To be customized | Yes | ||||
Chemical Composition | C: 0.95～1.20 | ||||||||
Available Materials | Low carbon stainless steel, titanium alloy (Ti, TC4), copper alloy, tungsten alloy, hard alloy, high temperature alloy (718, 713) | ||||||||
Finish | Dimensional Accuracy | Product Density | Appearance Treatment | Appropriate Weight | |||||
Roughness 1～5μm | （±0.1%～±0.5%） | 92～95% | Mirror Reflection | 0.03g～400g） | |||||
Mechanical properties | Hardness: annealed, ≤269HB; | ||||||||
Heat treatment | 1) Annealing, slow cooling at 800～920℃; | ||||||||
Detailed parameters of MHZ2-20DSMC air claw parallel opening and closing type
●MHZ2-16D Gripper MIM Parts adopt linear guide rail, high rigidity and high precision
●Dust-proof and drip-proof construction
●Choice of dust cover material
●Field Description Field Value Description
●Bore 20 Bore 20mm
●Action mode D double action
●Finger Position/Optional Variety -Standard TypeBasic Type
●Main body option - basic type
●Auto switch model - without auto switch
●Number of magnetic switches - 2 or none
●Customized specifications - standard
Note 1: When using a 2-color indicator, please set so that the indicator lights up in red
Make sure to test at the correct position of the gripper.
Note 2: When using the automatic switch on the square groove on the side, through-hole mounting is not possible.
Note 3: When the product is ordered with auto-switching function, only MHZ2-10 is shipped together with auto-switching
Mounting brackets. When using the automatic switch on the square slot on the MHZ2-16 side, the mounting bracket (BMG2-012) is required. Pease ordered separately.
Our Company
Qinhuangdao Zhongwei Precision Machine Parts Co., Ltd. is a cutting-edge enterprise focusing on metal powder injection molding technology, specializing in the production of MIM (metal powder injection molding) products. Its parent company was established in 1997 and now has a mature management, production and service system. . With the business philosophy of "bringing greater value to customers", the company provides customers with a large number of high-precision, complex shapes, good performance, and exquisite appearance of various metal material structural parts, functional parts and appearance parts, and at the same time has ceramics And the development ability of titanium alloy can meet the needs of different types of customers. Zhongwei has invested a lot of money in precision, and has Japan's Shimadzu sintering furnace and German continuous sintering furnace production lines. Provide MIM process products, cabinet locks, hinges, handles, accessories and other series of MIM products to assist users in realizing the needs of customers (markets), bring users an overall improvement in quality, and enable users to obtain economic and social benefits from it At the same time, Zhongwei Precision has a strong technical force, domestic technical experts who have been engaged in this industry for many years, and also received technical support from foreign counterparts. Our technical team and marketing team are committed to providing customers with good solutions and high-quality services.
Jingyan established the CNC department in 2016. In addition to supporting the processing of our own MIM process, it can independently undertake CNC business. At present, there are 89 CNC machines, mainly FANUC, equipped with professional programming and related personnel, and can provide customers with CNC processing services.
Zhongwei Precision Transmission Division, established in 2019, specializes in the design and manufacture of mechanical and electric transmission mechanism products, providing customers with overall transmission system solutions. Since its establishment, it has performed well in many projects. The product categories include TWS earphone box hinge, flexible folding screen hinge system, camera lifting system, new energy vehicle charging lock actuator, smart home electric transmission mechanism, medical electric transmission mechanism, etc. The Transmission Division is equipped with professional product performance and durability testing equipment. It has been equipped with force distance testers and rotation angle testers for shaft products, life test equipment, electrical parameter performance testing equipment for electric drive product testing, and a quiet room. Have a complete quality control system.
Zhongwei Precision Heat Dissipation Division, established in 2019, is mainly engaged in the design, development and production of conventional heat pipes and modules, ultra-thin mobile phone heat pipes, VC and other heat dissipation products, and is committed to providing customers with one-stop procurement services. Established a R&D base in Zhejiang. The main engineering R&D personnel are from senior Taiwan-funded factories. They have more than 15 years of experience in R&D and production of heat dissipation products, and have senior R&D and production capabilities. The business department is equipped with high-precision production equipment in the industry, and the equipment has a high degree of automation, which brings high-quality products and achieves a better user experience. Can provide customers with solutions for the overall cooling system. Heat dissipation core technology: capillary structure (capillary printing of powder paste, improving heat dissipation ability), heat pipe thickness/flat-head heat pipe (mobile phone lightweight trend), stainless steel VC (stainless steel VC and middle frame integration direction).
