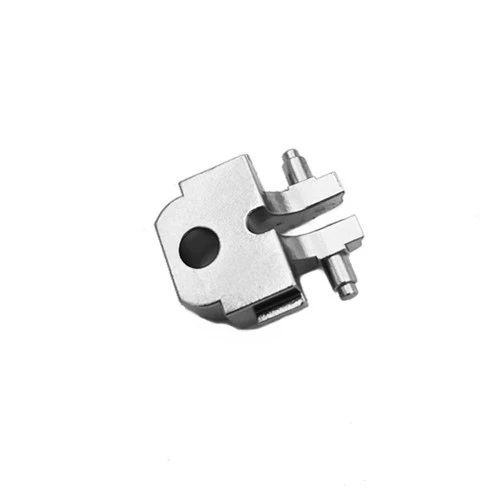

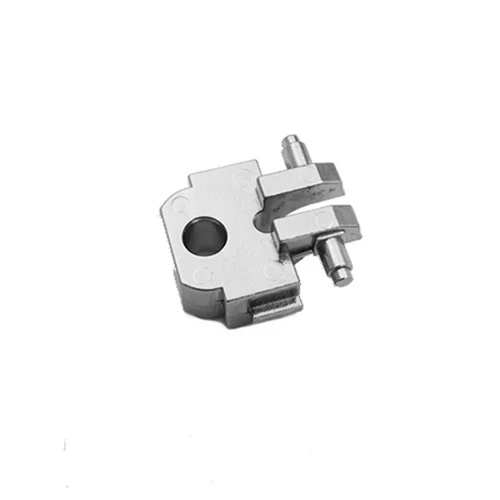

1.4306 Metal Powder Injection Molded Parts

Product Description

EN 1.4306 stainless steel is an austenitic stainless steel intended for primary forming into wrought products. 1.4306 is the EN numerical designation for the material. X2CrNi19-11 is the EN chemical name.

Grade: X2CrNi19-11

Number: 1.4306

Category: Austenitic stainless steel

Density: 7.9 g/cm³

1.4306:

1.4306 is an ultra-low carbon austenitic stainless steel developed to solve the serious intergranular corrosion tendency of the material caused by the precipitation of Cr23 and C6 under some conditions. Its resistance to intergranular corrosion in the sensitized state is significantly better than that of 304, and its performance is the same as that of 304 except that its strength is slightly lower. It can be welded by various common stainless steel welding processes, and heat treatment is not required after welding.

1.1.4306 corresponding grade:

(1) National standard GB-T standard: digital grade: S30403, new grade: 022Cr19Ni10, old grade: 00Cr19Ni10

(2) American standard: ASTMA standard: S30403, SAE standard: 30304L, UNS standard: 304L

(3) Japanese standard JIS standard: sus304L

(4) German standard DIN standard: "1.4306,

1.4307"5, European standard EN standard: "X2CrNi18-9

X2CrNi19-11", French standard NF standard: z2cn18-09, British standard BS standard: 304S31, 304s12, Swedish: /NTR standard: AISL.

2. 1.4306 chemical composition:

(1) Carbon C: ≤0.30, (2) Silicon Si: ≤1.00, (3) Manganese Mn: ≤2.00, (4) Phosphorus P: ≤0.045, (5) Sulfur S: ≤0.030, (6) Chromium Cr: 18.00～20.00, (7) Nickel Ni: 8.00～12.00 , ⑻Molybdenum Mo:—, ⑼Nitrogen N:—, ⑽Copper Cu:—, ⑾Other elements:—.

3. 1.4306 Physical Properties: ① Density (20°C)

/kg/dm3: "7.9,② Melting point/℃:—,③Specific heat capacity (0~100℃)/kg/(kg.k):0.5",④Thermal conductivity/w/(m.k)100℃-:" 16.3",⑸thermal conductivity/w/(m.k)500℃-:"21.5",⑥coefficient of linear expansion/(10-6/k)0~100℃:"16.8",⑦coefficient of linear expansion/(10- 6/k) 0~509℃: "18.3", ⑧Resistivity (20℃)/(Ω.mm2/m): "", ⑨longitudinal elastic modulus (20℃)/GPa: ", ⑩magnetic: no .

4. Mechanical properties of 1.4306:

⑴Delivery status: "Solution treatment for bar cutting,

Hot pressure processing without solution treatment", plate solution pickling, ⑵tensile strength (RM/MPa): 480, ⑶elongation strength (Rp0.2/MPa): 177, ⑷elongation A/%: 40, ⑸Reduction of area (Z/%): 60.

5. 1.4306 heat treatment:

①Hardness HBW≤: solid solution 187, hardness HRB≤: 90, ②heating temperature: 1010~1150, ③heating method: fast cooling, ④Others: cold rolled sheet solid solution 485, 201HBW 92HRB 210HV.

1. 4306 application fields: mainly used in chemical, petrochemical, fertilizer, petroleum, power and other industries that require welding but cannot be solid solution treated equipment, containers, pipes and various parts.

standard:

EN 10088-2:2005 Stainless steel. Technical delivery conditions of corrosion-resistant steel sheet/plate and strip for general purposes

EN 10088-3:2005 Stainless steel. Technical delivery conditions for corrosion-resistant steel semi-finished products, bars, wires, profiles and bright products for general purposes

EN 10028-7: 2007 Flat products of steel for pressure purposes. Stainless steel

EN 10216-5: 2014 Seamless steel tubes for pressure purposes. Technical Delivery Conditions. stainless steel pipe

EN 10217-7: 2005 Welded steel pipes for pressure purposes. stainless steel pipe

EN 10296-2: 2005 Welded circular steel tubes for mechanical and general engineering purposes. Stainless steel. technical delivery conditions

EN 10253-4: 2008 Butt welding pipe fittings. Wrought austenitic and austenitic-ferritic (duplex) stainless steels with specific inspection requirements

EN 10272: 2007 Stainless steel rods for pressure

EN 10263-5: 2001 Steel bars, rods and wires for cold heading and cold extrusion. Technical delivery conditions for stainless steel

EN 10250-4: 2000 Open steel die forgings for general engineering purposes. Stainless steel

EN 10297-2: 2005 Seamless round steel tubes for mechanical and general engineering purposes. Stainless steel. technical delivery conditions

EN 10253-3: 2008 Butt welding pipe fittings. Wrought austenitic and austenitic-ferritic (duplex) stainless steels without special inspection requirements

EN 10088-1:2005 Stainless steel. List of stainless steel

EN 10088-5:2009 Stainless steel. Technical delivery conditions for corrosion-resistant steel bars, wires, profiles and bright products for construction

EN 10088-4:2009 Stainless steel. Technical delivery conditions for corrosion-resistant steel sheet/plate and strip for construction

Element

X2CrNi19-11 steel (1.4306) mechanical properties:

Rm - Tensile Strength (MPa) (+A) 460-700

Rm - Tensile Strength (MPa) (+AT) 460-680

Rm - Tensile Strength (MPa) (+AT+C) 740-780

[R P0.2 0.2% yield strength (MPa) (+AT) 180

[R P0.2 0.2% yield strength (MPa) (+A) 180-220

KV - Transverse impact energy (J), (+A) +20°60 -196°60

KV - Impact Energy (J) Longitudinal, (+A) +20°100

A - minutes. Elongation at break (%) (+A) 35-45

A - minutes. Elongation at break (%) machine direction, (+AT) 40

Nominal diameter (mm): 2 - 50

Z - Reduction of fracture cross section (%) 63-68

Brinell hardness (HB): (+A) 215

Brinell hardness (HB): (+AT) 200

Properties of steel X2CrNi19-11 (1.4306):

Resistance to intergranular corrosion: in delivery condition - yes;

Under sensitized conditions - yes

Steel must not be used at metal temperatures below -270 °C
