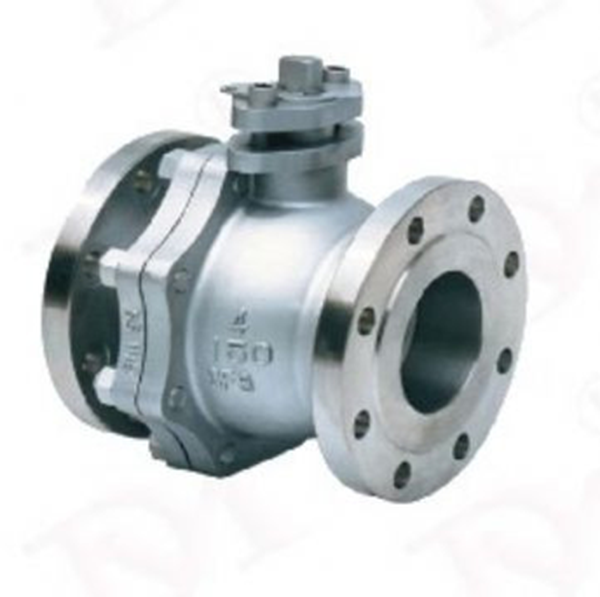

Ball Valve Lost Wax Investment Casting
The ball valve, the opening and closing part (ball) is driven by the valve stem and rotates around the axis of the ball valve. It can also be used for the regulation and control of fluids, among which the hard-sealed V-shaped ball valve has a strong shear force between its V-shaped ball core and the metal valve seat of surfacing welding carbide, especially suitable for fibers and tiny solid particles. etc. medium.
Product Introduction
|
Ball valve lost wax investment casting |
||||||||
|
Item |
Material |
Production Process |
Sintering Temperature |
Mold |
Custom |
|||
|
Ball valve lost wax investment casting |
Customized according to customer requirements |
Investment Casting |
1680℃ |
To be customized |
Yes |
|||
|
Available Materials |
Carbon steel, alloy steel, aluminum alloy, low carbon stainless steel, titanium alloy (Ti, TC4), copper alloy, high temperature alloy (718, 713) |
|||||||
|
Smoothness |
Dimensional accuracy |
Product density |
Appearance treatment |
Appropriate weight |
||||
|
Roughness 1～5μm |
(±0.1%～±0.5%) |
7.8g/CM³ |
According to customer requirements |
3g～4kg) |
||||
The ball valve, the opening and closing part (ball) is driven by the valve stem and rotates around the axis of the ball valve. It can also be used for the regulation and control of fluids, among which the hard-sealed V-shaped ball valve has a strong shear force between its V-shaped ball core and the metal valve seat of surfacing welding carbide, especially suitable for fibers and tiny solid particles. etc. medium. The multi-way ball valve can not only flexibly control the confluence, diversion, and flow direction switching of the medium on the pipeline, but also close any channel and connect the other two channels. This type of valve should generally be installed horizontally in the pipeline.
According to the driving mode, the ball valve is divided into: a pneumatic ball valve, an electric ball valve, and manual ball valve.
The ball valve was born in the 1950s. With the rapid development of science and technology, the continuous improvement of production technology, and product structure, it has rapidly developed into a major valve category in just 40 years. In Western industrially developed countries, the use of ball valves is increasing year by year.
In my country, Ball valve lost wax investment casting is widely used in petroleum refining, long-distance pipeline, chemical industry, papermaking, pharmaceutical, water conservancy, electric power, municipal, steel, and other industries, and occupies a pivotal position in the national economy. It has the action of rotating 90 degrees. The cock body is a sphere with a circular hole or channel passing through its axis.
The ball valve is mainly used to cut off, distribute and change the flow direction of the medium in the pipeline. It only needs to be rotated 90 degrees and a small rotational torque can be closed tightly. Ball valves are most suitable for on-off and shut-off valves, V-type ball valves. In addition to paying attention to the pipeline parameters, the electric valve should also pay special attention to the environmental conditions of its use. Since the electric device in the electric valve is an electromechanical device, its use status is greatly affected by its use environment. In general, special attention should be paid to the use of electric ball valves and butterfly valves in the following environments.
